china famous brand zhongwei Forged grinding balls for south africa mines
Forged Grinding Balls Chemical Elements( Below is common used type all over the world,if you have any other different requirement, please let me know,we can order from steel mill)
| Material | Chemical Elements |
| C | Si | Mn | P/S | Cr |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | <0.035 | <0.25 |
| 60MN | 0.55-0.65 | 0.17-0.37 | 0.7-1.0 | <0.04 | <0.25 |
| B2 | 0.72-0.85 | 0.17-0.37 | 0.7-1.0 | <0.04 | 0.4-0.6 |
| B3 | 0.5-0.8 | 1.0-1.8 | 0.4-1.0 | 0.035 | 0.5-1.0 |
| Material | Chemical Elements |
| C | Si | Mn | P | S | Cr |
| Speical Cr 2 | 2.0-3.0 | < 1.0 | 0.5-2.0 | <0.08 | < 0.06 | > 20 |
| Speical Cr 1 | 2.0-3.0 | < 1.0 | 0.5-2.0 | <0.08 | < 0.06 | > 15 |
| High Cr | 2.0-3.2 | < 1.0 | 0.5-2.5 | <0.08 | < 0.06 | > 10 |
| Medium Cr | 2.0-3.2 | < 1.0 | 0.5-2.5 | <0.08 | < 0.06 | > 5 |
| Low Cr | 2.2-3.4 | < 1.2 | 0.5-1.5 | <0.08 | < 0.06 | 1.0-1.5 |
Physical Property & Microstructure |
| Name | HRC | Ak(J/cm 2 ) | Microstructure | Times of Falling Balls |
| Low Cr Balls | ≥45 | ≥2.5 | P+C | ≥10000 |
| Medium Cr Balls | ≥48 | ≥3.0 | P+C | ≤Φ80 | ≥15000 |
| ≥Φ80 | ≥10000 |
| High Cr Balls | ≥58 | ≥4 | M+C+A | ≤Φ80 | ≥15000 |
| ≥Φ80 | ≥10000 |
Specification:
1) No deformation
2) High hardness Good wear resistant
3) Size:Dia20mm-150mm
4) Breakage<1%
5) Certification: ISO9001,SGS.

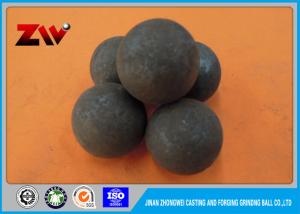

Grinding ball details
Grinding steel ball material:The high quality round steel.
Forged Grinding Balls Application( Please let me know your application, Jinan zhongwei will recommend the most high cost-effective type)
- Ball Mill
- Mining
- Cement Plant
- Power Plant

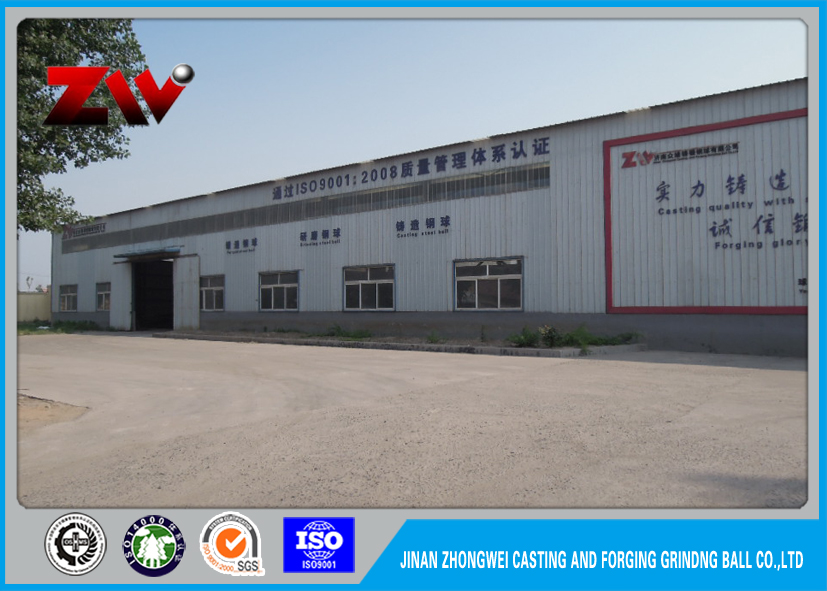

Jinan zhongwei casting and forging grinding ball Co.,ltd, as the powerful grinder of world’s mining,
specializes in the production of the forged steel ball, cast iron ball, cylpebs and grinding rods, which
are widely used in the mining fields, chemical plant ,power station and building material industries .
We have exported to more than 20 countries such as South Africa, Australia, Chile, Kuwait, UAE,
Russia, Malaysia, Korea and Philippine etc.
Forged Grinding Balls Package ( Container bags and steel drums are two common used package all over the world,let me know which one you want.)
